LeetCode 426. Convert Binary Search Tree to Sorted Doubly Linked List



Convert a Binary Search Tree to a sorted Circular Doubly-Linked List in place.

You can think of the left and right pointers as synonymous to the predecessor and successor pointers in a doubly-linked list. For a circular doubly linked list, the predecessor of the first element is the last element, and the successor of the last element is the first element.

We want to do the transformation in place. After the transformation, the left pointer of the tree node should point to its predecessor, and the right pointer should point to its successor. You should return the pointer to the smallest element of the linked list.

Example 1:

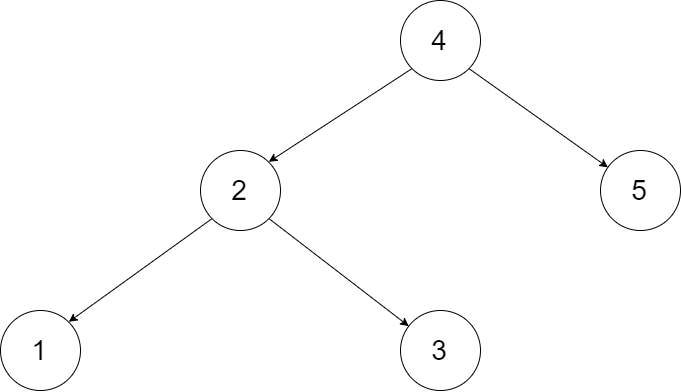

Input: root = [4,2,5,1,3]

Output: [1,2,3,4,5] Explanation:

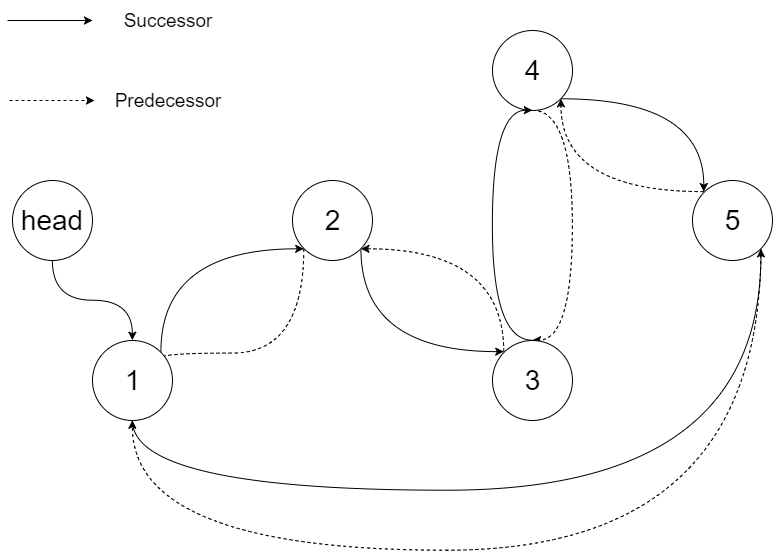

The figure below shows the transformed BST. The solid line indicates the successor relationship, while the dashed line means the predecessor relationship.

Example 2:

Input: root = [2,1,3]
Output: [1,2,3]

Example 3:

Input: root = []
Output: []
Explanation: Input is an empty tree. Output is also an empty Linked List.

Example 4:

Input: root = [1]
Output: [1]


Find the BST tree values in ascending order. Then use the BST tree values to build a Circular Doubly-Linked List.

Python Solution

# Definition for a Node.
class Node:
    def __init__(self, val, left=None, right=None):
        self.val = val
        self.left = left
        self.right = right

class Solution:
    def treeToDoublyList(self, root: 'Node') -> 'Node':
        if not root:
            return None
        node_values = []
        self.get_node_values(root, node_values)
        first_node = Node(node_values[0])
        prev = first_node
        for value in node_values[1:]:
            new_node = Node(value)
            new_node.left = prev
            prev.right = new_node
            prev = new_node
        prev.right = first_node
        first_node.left = prev
        return first_node
    def get_node_values(self, root, results):
        if not root:
        self.get_node_values(root.left, results)
        self.get_node_values(root.right, results)
  • Time Complexity: O(N).
  • Space Complexity: O(N).
